Description

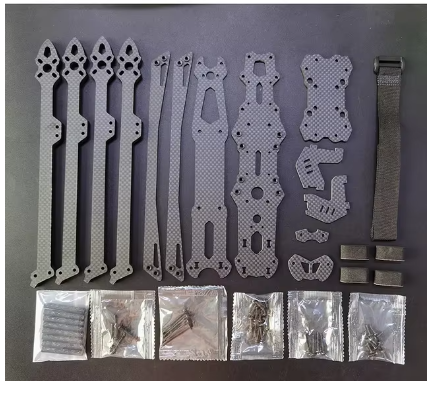

3K Carbon Fiber H-Shaped Racing Drone Frame (387mm Wheelbase)
This durable H-shaped frame, made from 3K carbon fiber, is designed to offer an optimal balance between weight and strength for high-performance FPV racing. With precise hole spacing for motors, flight controllers, and cameras, this frame provides versatility for building a custom drone setup.
Key Specifications
| Feature | Description |
|---|---|
| Material | 3K carbon fiber |
| Rack Type | H-shaped |
| Wheelbase | 387mm |
| Product Size | 249mm * 296mm |
| Packaging Size | 120mm * 300mm * 30mm |
| Product Weight | 217g |
| Weight with Packaging | 230g (in static bag packaging) |
| Bottom/Middle Plate Thickness | 3.0mm |
| Top Plate/Connecting Plate Thickness | 2.0mm |
| Arm Thickness | 6mm |
| Camera Installation Spacing | 19mm |
| Image Transmission Hole Spacing | 30.5mm / 20mm |
| Flight Control Installation Spacing | 30.5mm / 20mm |
| Motor Mounting Hole Spacing | 16mm / 19mm |
